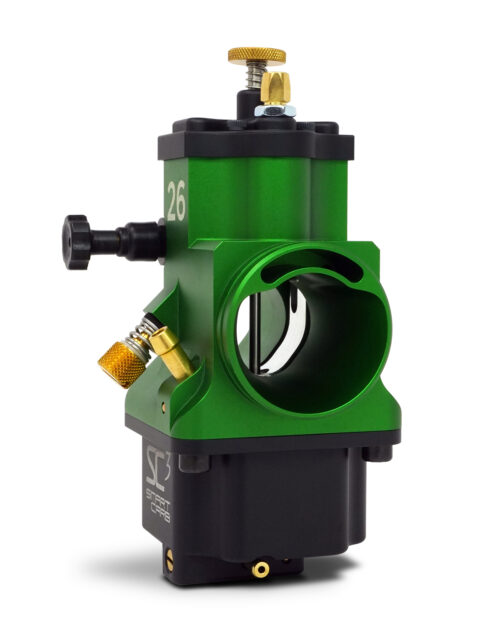

SmartCarb For Kawasaki KLX140

Name: SmartCarb For Kawasaki KLX140
SKU: SC3-KAW140
Availability: InStock

$499.00 – $578.00

Up your game!

The all-new SC3 model SmartCarb kit is compatible with stock or modified (big bore) Kawasaki KLX140 4-stroke dirt bikes, offering crisp, clean throttle response, substantial performance gains, and unparalleled ease of use.

Choose the 26mm SC3 & Fit Kit option if replacing the stock carburetor in a stock bore KLX140. Choose the 28mm SC3 option if replacing the stock or aftermarket carburetor with similar dimensions such as the Keihin PWK28 (35mm engine-side spigot OD, 50mm filter-side spigot OD). In general we recommend the 26mm SC3 option for stock KLX140s and the 28mm SC3 option for bikes with 170-220cc+ big bore kits.

The Fit Kit option (kit components listed in the Fitment Information tab below) is required when replacing the stock carburetor. If replacing a Keihin PWK28 or similarly sized aftermarket carburetor, the Fit Kit option may be redundant. Components required to adapt the Keihin PWK28 or similarly sized aftermarket carburetors (intake, throttle cable, and airbox rubber boot) are compatible with the 28mm SC3.

Every SmartCarb ships pre-adjusted specifically for your bike setup. Please provide information in the forms below about any engine/exhaust modifications, how you ride (riding style), and what fuel selection you use.

Questions about compatibility or fitment? Contact Us!

Products shipping internationally may be subject to import duties/taxes.

Size

Fit Kit

Clear

Confirm Year *

Engine/Exhaust Modifications *

Riding style(s) *

Fuel Selection/Oil Ratio (if applicable) *

SKU: SC3-KAW140 Categories: Offroad 4-Strokes, Kawasaki

Description

New Unibody Design!

The SC3 SmartCarb replaces the stock or modified Kawasaki KLX140 carburetor.

The SmartCarb SC3 is precision air/fuel metering instrument that provides extremely fine fuel atomization, precise mixture control, and automatic air density compensation in a single circuit, externally adjustable, jet-less fuel system.

SC3 Upgrades:

Ludicrously Simple Design | CNC billet machined unibody construction
O-ring Float Bowl Gasket | Improved sealing and sleeker look
“Tucked” Fuel Fitting | Improved fuel line routing
Crisper Clicker Haptics | Improved clicker adjustment feel
Improved Fuel Rate| 2X dump passages for quicker float bowl fueling response
Reduced Part Count | Cost savings passed to our customers (-$100)

SmartCarbs are proudly designed and manufactured in the USA!

Learn more about How It Works

Performance Guarantees

Less Is More

The SC3’s patented float bowl venting and single circuit, metering-rod-only fueling work together to provide superior performance and efficiency at every throttle position when compared to competing fuel systems. No jets, no secondary circuits, and no compromises.

8-10% More HP & Torque | Compared to fully tuned jet/needle carburetors size-for-size
25-30% Greater Fuel Economy | Forget the oversized tank or pair one up for ultimate range
30-50% Less Emissions Outputs | 3X EPA certified for on-road emissions
Incredibly Crisp, Clean Throttle Response | Increased torque/tractability & substantial peak RPM overrev
Ships Pre-Tuned | Every SC3 SmartCarb ships pre-adjusted specifically for your Kawasaki KLX140

Ultimate Simplicity

Everything You Need, Nothing You Don’t

While competing fuel systems continue down the path of ever-greater complexity by adding power-jets, additional circuits, and adjustment knobs, the SmartCarb SC3 takes a different approach. Our patented, single circuit design makes the SC3 the easiest carburetor on the planet to tune and maintain.

Tool-Free Tuning in Seconds | SC3 offers the finest adjustment resolution of any carburetor, right at your fingertips
Set and Forget | Automatic air density compensation for elevation, temperature, and even blow-thru boost
No Jets or Jetting | Trash the brass and leave jetting behind
Stop Getting Hosed | Super clean form-factor with integrated float bowl venting – NO dangly hoses
Less is More | Smallest part count of any carburetor on the market
Mean AND Green | Zero fuel spillage, even when tipped over

Fitment Information

The 26mm SC3 and 28mm SC3 both accept the stock throttle cable. Aftermarket throttle cables that work with similarly sized aftermarket carburetors like the Keihin PWK28 are also compatible.

Fit Kit Contents Include:

Aluminum intake flange including rubber boot, clamps, o-ring & bolts
Airbox rubber boot w/clamp (filter-side spigot size: 44.5mm for 26mm SC3, 50mm for 28mm SC3)

View the 28mm SC3 SmartCarb Dimensional Guide to assess fitment potential. A, B, C, D, and body width dimensions included below:

A (engine-side spigot outer diameter) 35mm
B (length end-to-end) 82.5mm
C (total height, including clicker adjuster) 143mm
D (filter-side spigot outer diameter) 50mm (2 inch) standard OR 60.3mm (2.375 inch) OR 63.5mm (2.5 inch)
Body width – 64mm

View the Quick Start Guide (included with your purchase).
